Derale Stacked Plate Fluid Coolers

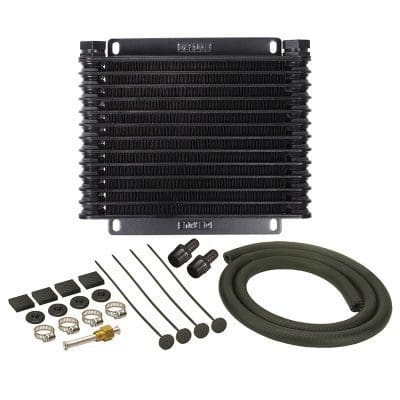

With our top of the line 16 Row Stack Plate cooler, -6AN aluminum fittings and hose barb adapters, this highly efficient kit extends transmission life by preventing heat-related transmission failures while also improving shifting performance. This kit comes with a complete transmission cooler hardware kit to easily install onto vehicles with 5/16″ transmission cooler lines.


  • Cooler style: Stacked Plate
  • Construction: Aluminum
  • Inlet size: -10AN o-ring female x -6AN male
  • Fitting size: 3/8″ barb
  • Width: 13″
  • Height: 6-7/16″
  • Depth: 2″
  • Inlet dim: 10″
  • Mounting: 12-1/4″ x 4-7/8″
  • Hose size: 3/8″
  • Hose length: 4′


  • Built in turbulators agitate fluid for maximum heat transfer
  • Sturdy furnace brazed all aluminum construction
  • High efficiency Stacked Plate 16 row cooler
  • Male -6AN aluminum O-ring inlet fittings & 3/8″ hose barb adapters included
  • Complete hardware kit included
  • 32,000 BTU’s Per Hour
  • Derale coolers are rated at 250psi working pressure and 300psi burst strength
Purchase this product now and earn 230 G8Only Points!


Derale stacked plate fluid coolers have more surface area than tube and fin coolers, giving you more efficient heat extraction. The units feature embossed turbulator plates and durable, brazed aluminum construction. They are equipped with AN male ports and are also available with an OEM-spec, high-temperature oil hose with swedged hose ends. Derale Performance coolers have pre-drilled mounting brackets and include hardware where noted.

Additional information


9800 btu, 14k btu, 20k btu, 29k btu
